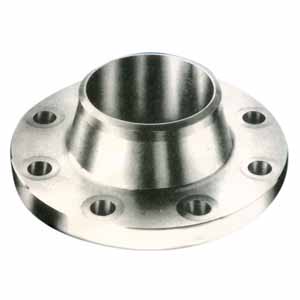

Overseas Steelage are exporting & supplying superior quality of Weldneck Flanges. The Weldneck Flanges offered by us find their application in various industrial processes. Can provide weldneck flanges in varied range of grades of Weld Neck Flanges includes Carbon Steel Weld Neck Flanges, Stainless Steel Weld Neck Flanges, Alloy Steel Weld Neck Flanges, Duplex Steel Weld Neck Flanges, Nickel Alloy Weld Neck Flanges, and Copper Nickel Weld Neck Flanges.. Furthermore, these Weld Neck Flanges are available in various specifications and sizes in order to fulfill the clients needs as per their requirements.
|
| Specifications: |
Size:
|
1/2" (15mm) NB TO 24" (600mm) NB (ABOVE 24" NB MAKE TO ORDER BASIS)
|
Nominal Pressure Range:
|
150# - 2500#
|
Schedule:
|
5S, 10S, 10, 20, 40S, 40, STD, 60, 80S, 80, XS, 100, 120, 140, 160, and XXS
|
Face Type:
|
Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
|
Grades Available:
|
CARBON STEEL: ASTM A 105, LF 2, LF 3
ALLOY STEEL: ASTM A182 GR. F1, F 5, F 9, F 11, F 22, F 91
STAINLESS STEEL: ASTM A182 GR. 304/304L, 316/316L, 310, 347, 321, 904L
NON FERROUS METALS: COPPER, HASTELLOY C 276, INCONEL 600/625/825, BRASS, MONEL 400/500 ,TITANIUM, TANTALUM, BRONZE, ALUMINIUM, HIGH SPEED STEEL, ZINC, LEAD
|
Flange Standards:
|
ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S: BS4504, BS4504, BS1560, BS10
|
|
